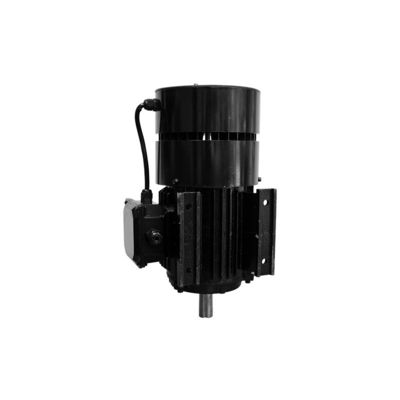

B Insulation Grade Ac Motor Magnet 3 Phase Permanent Magnet Synchronous Motor

  • B Insulation Grade Ac Motor Magnet 3 Phase Permanent Magnet Synchronous Motor
  • B Insulation Grade Ac Motor Magnet 3 Phase Permanent Magnet Synchronous Motor
  • B Insulation Grade Ac Motor Magnet 3 Phase Permanent Magnet Synchronous Motor
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-1.1-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 380V Insulation Grade B
Frequency 100-200Hz Product Name Permanent Magnet AC Motor
Efficiency 88.6%-95.3% Installation Mode B3/B35
Speed 1500-3000rpm Output 0.75-15Kw
Highlight

B Insulation Grade ac motor magnet

,

IMB35 ac motor magnet

,

3 phase permanent magnet synchronous motor
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

B Insulation Grade Permanent Magnet AC Motor Installation Mode B3/B35 Output 0.75-15Kw

Product Description:

The Permanent Magnet Alternating Motor is a high-performance AC motor with superior efficiency and reliability. The motor has an installation mode of B3/B35, voltage of 380V, and an output of 0.75-15Kw. It is capable of working under the system S1. This motor is equipped with permanent magnets for maximum efficiency and minimal energy losses. It is also equipped with an advanced control system which allows for precise control of the motor. This motor is perfect for industrial applications where a high level of performance and reliability is required. With its high efficiency and reliable construction, this motor is an ideal choice for any industrial application.



Features:



  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection





Technical Parameters:

Parameter Value
Efficiency 88.6%-95.3%
Frequency 100-200Hz
Speed 1500-3000rpm
Working System S1
Product Name Permanent Magnet AC Motor
Installation Mode B3/B35
Insulation Grade B
Output 0.75-15Kw
Voltage 380V


Applications:

The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.

This Permanent Magnet AC Electric Motor is from China, with a minimum order quantity of 1PCS and price ranging from $120-580/PCS. The delivery time is 7-15 work days and payment terms are L/C, T/T. The supply ability of the motor is 500PCS 15-20work days. It has several installation modes, including B3/B35, and the output ranges from 0.75-15Kw. The efficiency of the motor is 88.6%-95.3%, with insulation grade B and working system S1.





Support and Services:

Permanent Magnet AC Motor Technical Support and Service

We are dedicated to providing the highest quality technical support and service for Permanent Magnet AC Motor products.

If you need help with a Permanent Magnet AC Motor, we are here to help. Our team can provide guidance on installation, setup, and maintenance for your motor, as well as offer assistance with any troubleshooting you may need. We also provide technical support for repairs, replacement parts, and upgrades.

We understand that you want the best possible experience with your Permanent Magnet AC Motor, and we are here to make sure you get it. Our team is committed to providing the highest quality technical support and service so you can get the most out of your motor.

B Insulation Grade Ac Motor Magnet 3 Phase Permanent Magnet Synchronous Motor 0B Insulation Grade Ac Motor Magnet 3 Phase Permanent Magnet Synchronous Motor 1B Insulation Grade Ac Motor Magnet 3 Phase Permanent Magnet Synchronous Motor 2

FAQ:

Q: What is Permanent Magnet AC Motor?
A: Permanent Magnet AC Motor is an electric motor that uses magnets embedded in its rotor to generate a rotating magnetic field. It works by converting electrical energy into mechanical energy.
Q: What brand of Permanent Magnet AC Motor do you offer?
A: We offer Xicheng brand Permanent Magnet AC Motor.
Q: What is the model number of your Permanent Magnet AC Motor?
A: Our model number is TYB80-8-1.1-3000.
Q: Where is your Permanent Magnet AC Motor made?
A: Our Permanent Magnet AC Motor is made in China.
Q: How much does your Permanent Magnet AC Motor cost?
A: Our Permanent Magnet AC Motor costs $120-580 per piece.
