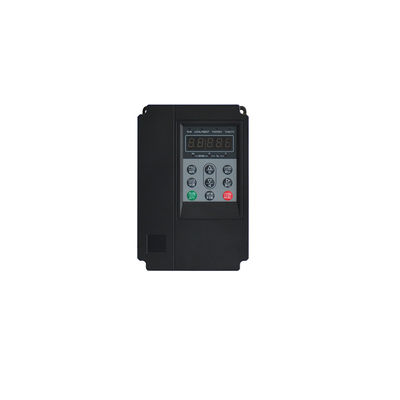

50 / 60Hz Three Phase Motor Driver 400 - 55000W Variable Speed Drive For 3 Phase Motor

  • 50 / 60Hz Three Phase Motor Driver 400 - 55000W Variable Speed Drive For 3 Phase Motor
  • 50 / 60Hz Three Phase Motor Driver 400 - 55000W Variable Speed Drive For 3 Phase Motor
  • 50 / 60Hz Three Phase Motor Driver 400 - 55000W Variable Speed Drive For 3 Phase Motor
Place of Origin China
Brand Name Xicheng
Model Number EZ608*T55GB
Minimum Order Quantity 1PCS
Price $52-1310/1PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 1000PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Current 1.5A-112A Rated Frequency 0.0-500.0Hz
Output Power 400-55000W Voltage Frequency 50/60Hz
Phase Number 3 Input Voltage AC 3phase 380V
Weight 0.8-15Kg
Highlight

50Hz Three Phase Motor Driver

,

60Hz Three Phase Motor Driver

,

variable speed drive for 3 phase motor
You can tick the products you need and communicate with us in the message board.
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Power（Kw) 0.4 0.7 1.5 2.2 0.5 0.7 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55
Input voltage(V) AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v
Output current(A) 1.5 2.1 3.8 5.1 2.3 4 7 5.1 9 13 17 25 32 37 45 60 75 91 112
Voltage frequency(HZ) 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Rated frequency(HZ) 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0
Weight(kg) 0.8 0.8 0.8 0.8 0.8 0.8 0.8 2 2 2 3.8 3.8 5.75 5.75 5.75 9.8 9.8 9.8 15
Size(mm) 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 125*185*160 125*185*160 125*185*160 160*247*183 160*247*183 208*304*192 208*304*192 208*304*192 225*360*224 225*360*224 225*360*224 295*520*270
Leave a Message
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Product Description

3 Phase Number Three Phase Motor Driver Voltage Frequency 50/60Hz Output Power 400-55000W

Product Description:

This three-phase motor driver module is a multi-phase motor controller designed for three-phase motor control applications. It offers a wide range of output power from 400-55000W, weights from 0.8-15Kg, and can be used in either 50/60Hz voltage frequency. The input voltage is AC 3phase 380V, making it an ideal choice for a variety of motor control applications.

The three-phase driver module uses advanced control algorithms and high-precision control technology to provide smooth and efficient motor control. Its robust design ensures reliability and high efficiency, making it an excellent choice for any three-phase motor control application.



Features:

  • Product Name: Three Phase Motor Driver
  • Input Voltage: AC 3phase 380V
  • Output Power: 400-55000W
  • Voltage Frequency: 50/60Hz
  • Output Current: 1.5A-112A
  • Rated Frequency: 0.0-500.0Hz
  • Keywords: Three-Phase Motor Controller, Three-Phase Driver Module, 3-Phase Motor Driver


Technical Parameters:

Parameter Specification
Phase Number 3
Input Voltage AC 3phase 380V
Weight 0.8-15Kg
Voltage Frequency 50/60Hz
Output Current 1.5A-112A
Rated Frequency 0.0-500.0Hz
Output Power 400-55000W


Applications:

This 3-Phase Motor Driver from Xicheng is available at a price range of $52-1310/1PCS, and the minimum order quantity is 1PCS. It is lightweight, weighing between 0.8-15Kg, and can be delivered within 7-15 work days. This driver is suitable for use with a variety of payment options, including L/C, T/T, and it is also highly durable and reliable, with an impressive supply ability of 1000PCS 15-20work days.



Support and Services:

Three Phase Motor Driver Technical Support and Service

We provide technical support and service for our Three Phase Motor Driver. Our team of experienced engineers is available to answer any questions you may have about the product.

We also provide troubleshooting advice and assistance in resolving any issues you may experience with the Three Phase Motor Driver. Our team can provide step-by-step instructions to help you get your product up and running quickly.

If you have any questions or need help with the Three Phase Motor Driver, please contact us and we will be happy to assist you.

50 / 60Hz Three Phase Motor Driver 400 - 55000W Variable Speed Drive For 3 Phase Motor 050 / 60Hz Three Phase Motor Driver 400 - 55000W Variable Speed Drive For 3 Phase Motor 150 / 60Hz Three Phase Motor Driver 400 - 55000W Variable Speed Drive For 3 Phase Motor 2

FAQ:

Q1: What is the brand name of the Three Phase Motor Driver?

A1: The brand name of the Three Phase Motor Driver is Xicheng.

Q2: Where is the Three Phase Motor Driver from?

A2: The Three Phase Motor Driver is from China.

Q3: What is the MOQ for the Three Phase Motor Driver?

A3: The MOQ for the Three Phase Motor Driver is 1PCS.

Q4: How much does the Three Phase Motor Driver cost?

A4: The Three Phase Motor Driver costs between $52-$1310 per unit.

Q5: How long will it take to deliver the Three Phase Motor Driver?

A5: The Three Phase Motor Driver will be delivered within 7-15 work days.
