PP Volute Centrifugal Blower Fan Permanent Magnet Inverter Laboratory Centrifugal Fan
| Place of Origin | China |
|---|---|
| Brand Name | Xicheng |
| Model Number | 6# |
| Minimum Order Quantity | 1PCS |
| Price | $261-1103/PCS |
| Delivery Time | 7-15 work days |
| Supply Ability | 300PCS 20-30work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | PP Volute Centrifugal Blower Fan,centrifugal air blower 1500W,centrifugal air blower 7500W |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
| Type | 3# | 3# | 3.6# | 3.6# | 4# | 4# | 4# | 5# | 5# | 5# | 6# | 6# | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| power （Kw） | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 4 | 3 | 7.5 | 5.5 | 4 | 5.5 | 7.5 | |
| speed （r/min） | 2900 | 3200 | 2900 | 3000 | 2750 | 2900 | 3200 | 2900 | 2415 | 1800 | 1450 | 2070 | |
| Impeller material | PP | PP | PP | PP | PP | FRP | FRP | FRP | FRP | PP | PP | FRP | |
| Air volume (m³/H） | 2400 | 2700 | 2600 | 2800 | 4500 | 5500 | 5000 | 10000 | 7000 | 9000 | 8000 | 11000 | |
| wind presssure （Pa） | 1000 | 1200 | 1200 | 1200 | 1200 | 1300 | 1300 | 1500 | 1500 | 1500 | 1000 | 1500 | |
| Air inlet | 315-415 | 315-415 | 355-455 | 355-455 | 400-500 | 400-500 | 400-500 | 500-600 | 500-600 | 500-600 | 600-700 | 600-700 | |
| air outlet | 315-415 | 315-415 | 355-455 | 355-455 | 400-500 | 400-500 | 400-500 | 500-600 | 500-600 | 500-600 | 600-700 | 600-700 |
Product Description

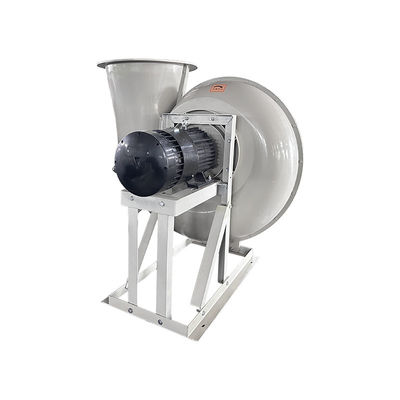

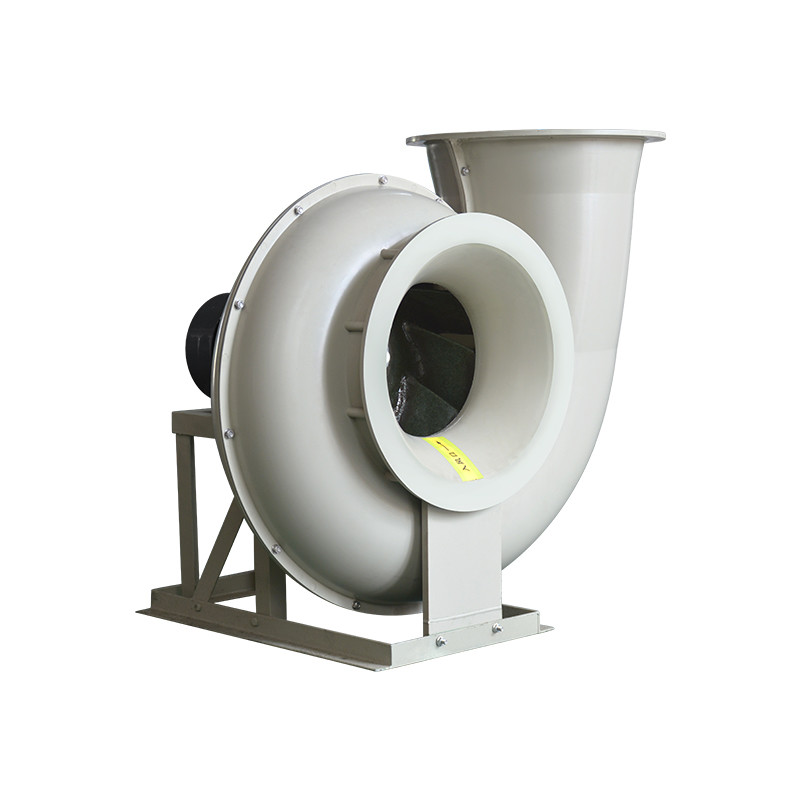

PP volute permanent magnet inverter fan laboratory Centrifugal fan
PP round volute fan Structural features:
1. Reasonable structure, our company and Xi 'an Jiaotong University joint research and development design, repeated trials forum, break the traditional fan design concept, and strive for efficiency and stability,
2. Volute shape design: smooth air flow field, high efficiency, low noise; PP shell of flame retardant material, strong anti-corrosion performance, suitable for a variety of pipeline connections, a wide range of use,
3. The transmission mode of direct connection between the motor and the impeller makes the transmission loss smaller and the efficiency of the fan higher,
4. The central shaft of the impeller adopts conical design, and the connection with the motor adopts cone sleeve protection to prevent corrosion and rust of the connecting rod, and the installation, maintenance and replacement are more convenient,
5. High efficiency and energy saving impeller design, the impeller adopts high strength material integrated injection molding, high strength, good toughness, aging resistance, corrosion resistance, long service life,
6. PP centrifugal fan with permanent magnet motor, high efficiency and energy saving is not easy to damage, large wheelbase, high torque, large air volume, stepless speed regulation, easy to operate,
7. Suitable for 3 kinds of motors: conventional motor, explosion-proof motor, permanent magnet motor.
